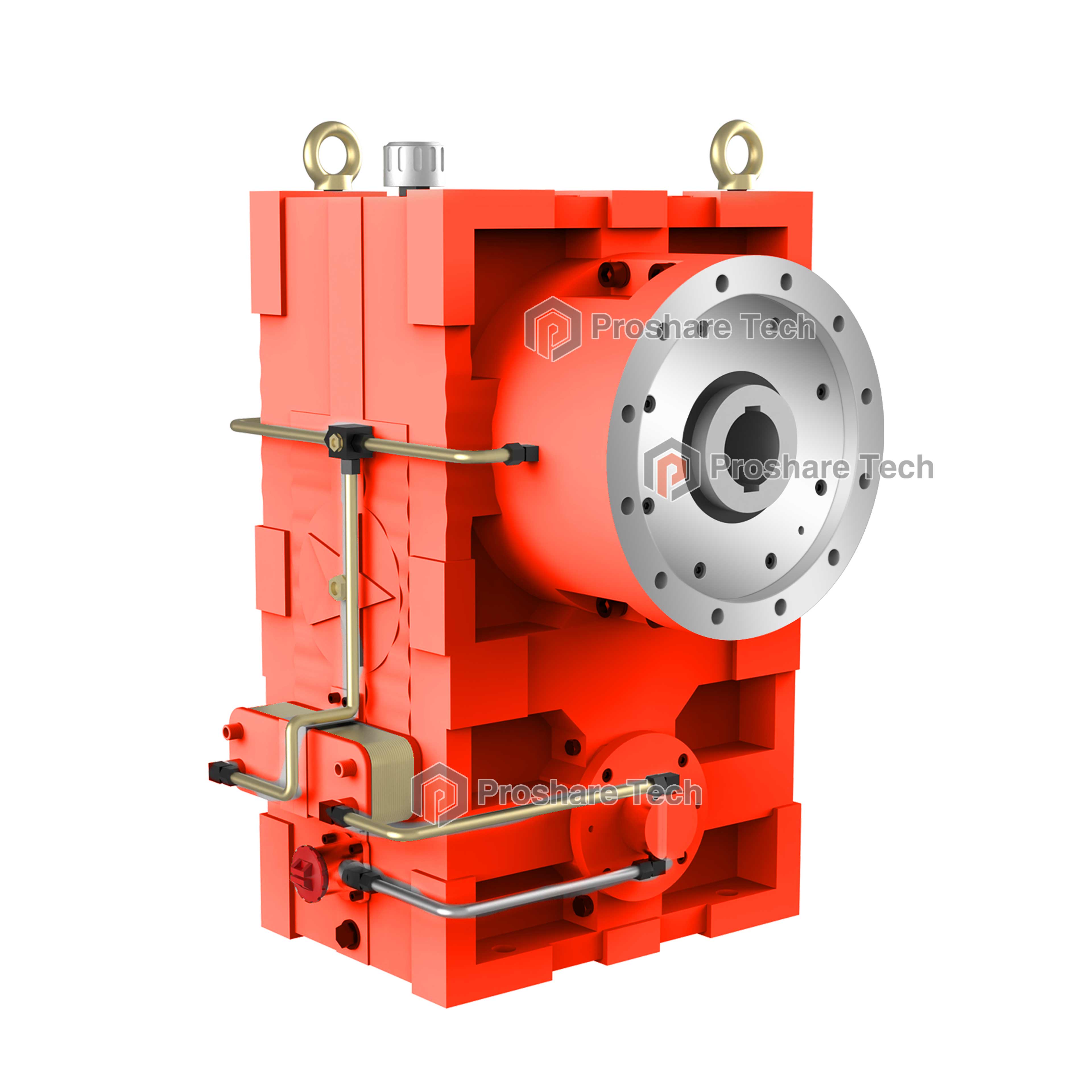

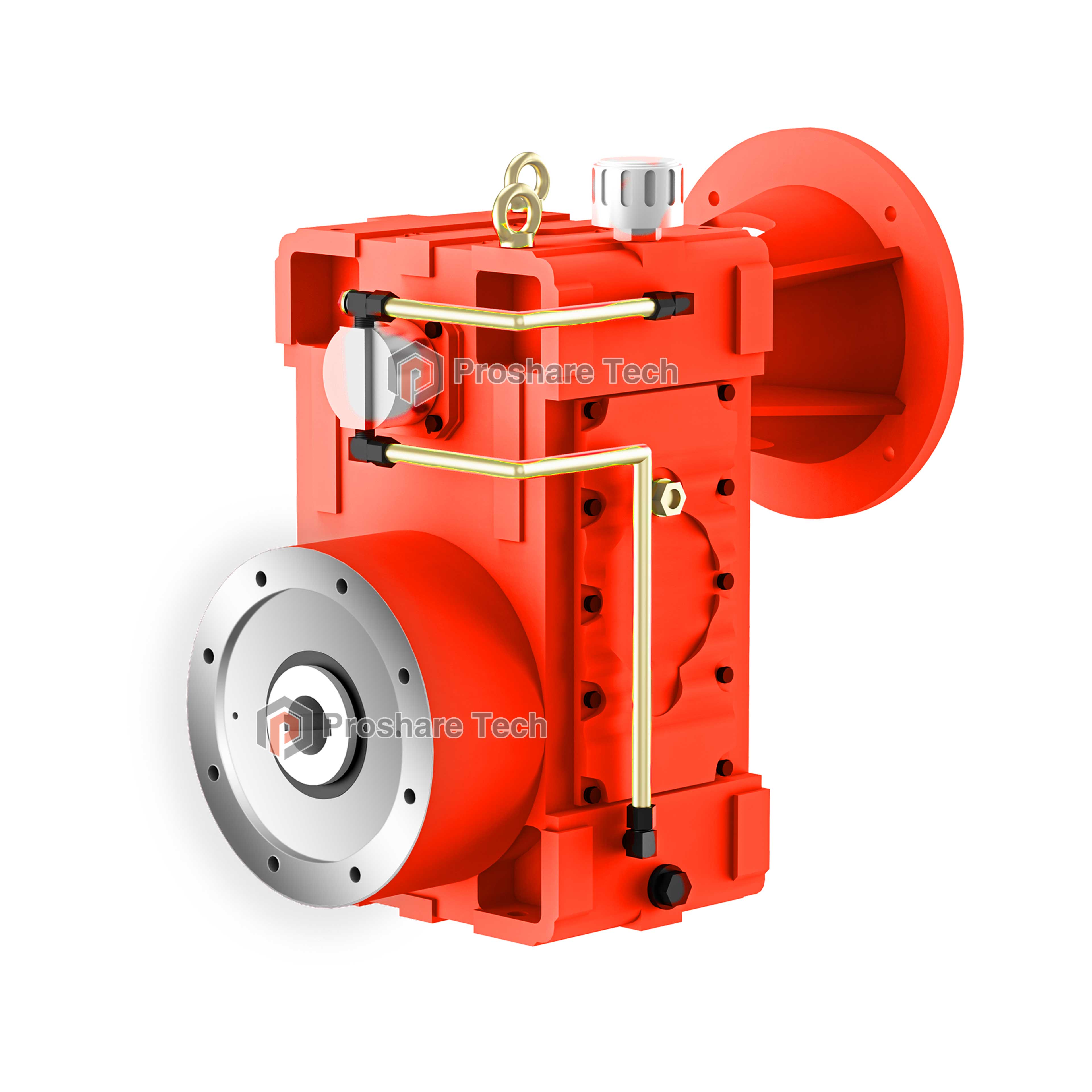

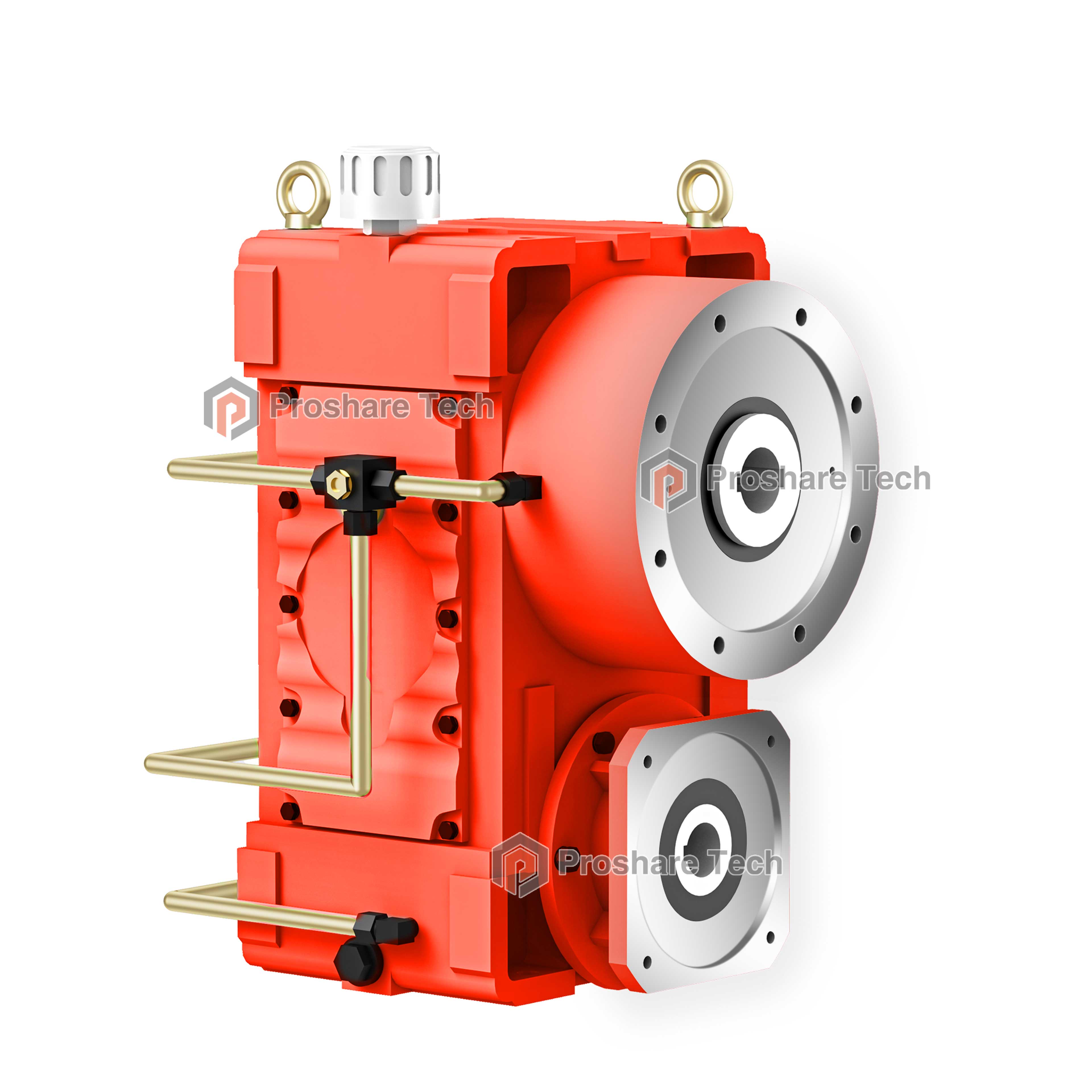

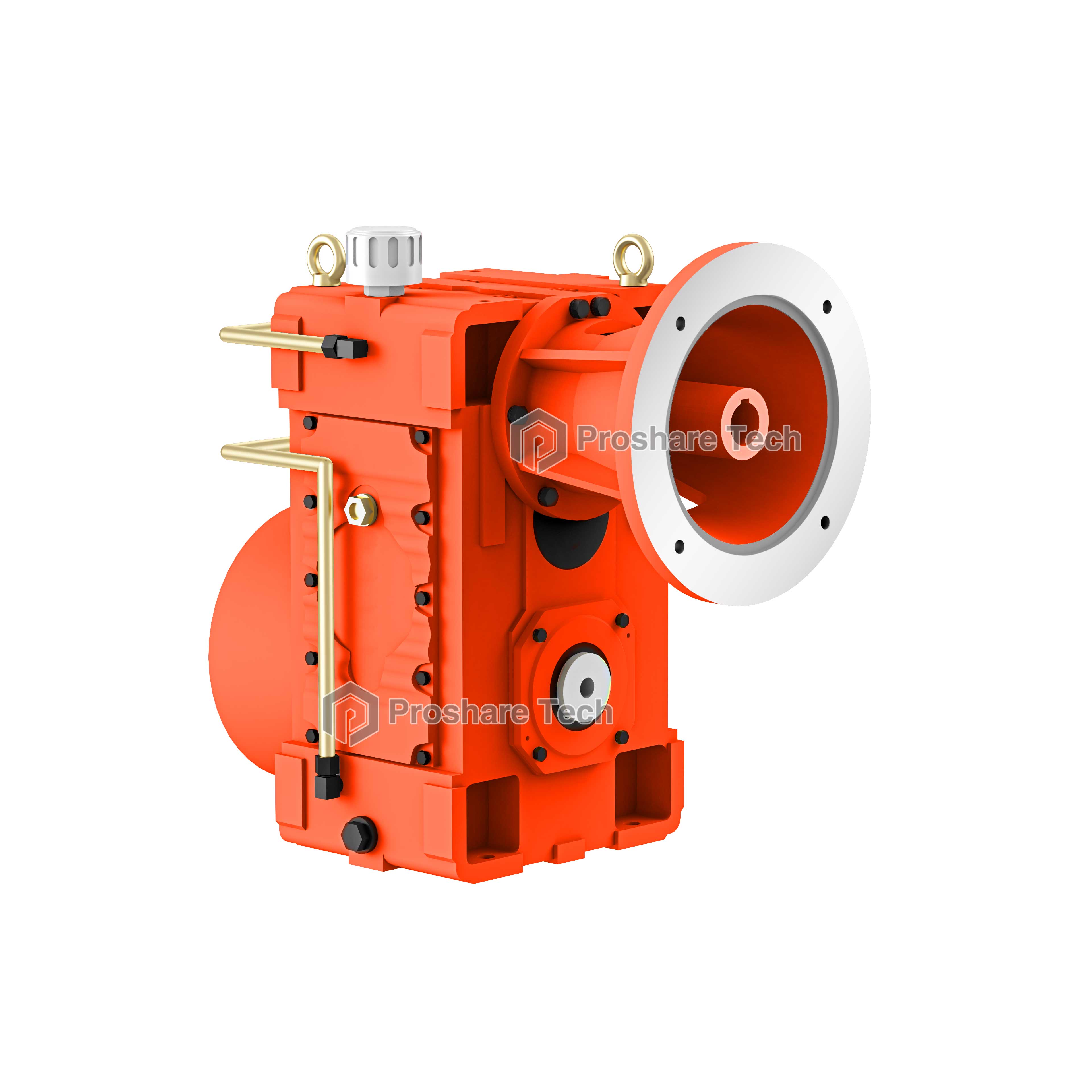

Series model ZLYJ /ZSYJ gearbox(Speed Reducer) is a transmission specially designed for a single screw extruder, in which there are high precision hardend gears and thrust block. It has features that all the gears and axis are made of high strength alloy steel. All the gears are made by carburization process、quenching process and tooth grinding process. The gear precision is up to grade 6 specified in standard GB10095-888. The hardness of gear surface is HRC54~62. At the front end of hollow input axis, there is overspecification thrust bearing that will bear an axial thrust while the screw is working. All the other standard components, such as the bearings and the oil seals are assorted with well-know brands. Our products are widely used in Plastic,Rubber,Palm Oil etc. industry.
Model：ZLYJ112~ZLYJ630
ZSYJ280~ZSYJ630
Power：5.5-550KW
Ratio：6.3~100
Output torque：800-105050NM
Axial thrust：35-880KN
Standard voltage and frequency：380V/50HZ
Installation：Horizontal/Vertical
1. High strength alloy steel gears and shafts, sturdy and wearable
2. Hollow output shaft integrated with strong thrust bearings to withstand axial force of the screw
3. Large load capacity, superior performance for screw extruders applications
4. High efficiency, high reliability, long service life, low noise
5. Optional international brands of bearings and oil seals
6. Customize non-standard products according to customer's industry requirements
